Sale

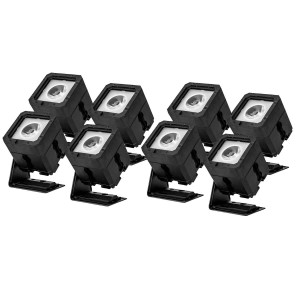

Astera PB15-SET PixelBrick 8 Light Set with Charging Case

SKU:
PB15-SET
$4,995.00 $3,850.00
(No reviews yet) Write a Review
Width:
18.00 (in)
Height:
22.00 (in)
Depth:
8.00 (in)
Current Stock:

About Astera PixelBrick

- PixelBrick LED Light -
Titan LED Engine, 15W, CRMX + Wired DMX Say hello to our next-generation multi-purpose light. In addition to being a battery-powered uplight and spotlight with 5 different beam options, multiple PixelBricks can be connected to form clusters and shapes. With about 10cm edge length and 1kg weight, it is small and lightweight while still featuring a powerful output of high-quality light which meets the highest demands of film, TV and stage clients.

Features

Talkback+
Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Seamless Runtime
Set the length of your production and be sure that your lights won't run out while still getting the maximum brightness.

TruColor Calibration
Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.

Effects
Quickly build programs out of colors and effects, trigger them or make them match a beat.

Flicker Free
Scrambled PWM technology to avoid flickering when filming.

Green/Magenta Correction
Adjust green/magenta during content creation to reduce postproduction work.

Scheduled StandBy
Switch lights into power-saving standby and schedule them to wake up when the production starts.

Dynamic PowerBoost
This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.

Emergency Lights
Switches to white light when AC power is cut to keep your event save.

Anti-Theft
The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.

DJ Feature
Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.

Other Features
The AsteraApp is packed with many additional items and new features are frequently added via software update.

- Charging Case -
Sturdy charging and transportation case with 2 wheels and 3 handles to carry 8 PixelBricks. The included power supply can charge 8 tubes from one AC outlet.

Astera PixelBrick Features

  • PixelBrick LED Light Features
  • Combine several units into a cluster
  • Create shapes using various mounting accessories
  • Titan LED Engine
  • Filters and Dome create different beams and looks
  • AirlineTrack for accessories
  • Backside display with dedicated Color and Brightness buttons
  • Removeable bracket
  • Direct App Control (No AsteraBox required)
  • Charging Case Features
  • Included power supply for charge 8 tubes from one AC outlet

Astera PixelBrick Specifications

PixelBrick LED Light:

LED Engine
Titan LED Engine
Colors
RGB Mint Amber
Total LED Power
15W
Power Draw
12W
Light output
2700K, 3200K, 5500K: 388lm, 450lm, 375lm
CRI(Ra)/TLCI 3200-6500K
>=96
Beam Angle
13 Degree
Strobe
0 - 25Hz
Pixels
1

PixelBrick LED Light:

Wired DMX
Yes (via PWB-2-86)
CRMX Receiver
Built-in
Wireless Frequencies
CRMX 2.4GHz, UHF, Bluetooth
Range (m/yds)
300 / 330yds

PixelBrick LED Light: Electrical

Battery Lifetime
70 % after 300 cycles
Battery Runtime
Up to 20 hours
Charging Time (nominal)
4 hrs
Input Voltage
24VDC
Input Current
0.8A
Battery Quantity
8

PixelBrick LED Light: Construction

Housing
Aluminium
IP Rating
IP65
Ambient Temperature
32 Degree - 104 Degree F (0 Degree - 40 Degree C)
Dimensions
3.6 x 3.6 x 3.7" (91 x 91 x 94mm)
Weight
2.47 lbs (1.12kg)
Material
ABS
Input
100-240VAC, 50/60Hz, 1A, 200W
Input Current
1.8A/115VAC ,1A/230VAC
Output
24V
Output Connectors
2x DC Barrel 5.5/2.1mm
Power IN/Power OUT
Via Powercon True1
Dimensions
21.3 x 17.44 x 8.1" (541.5 x 400 x 205.5mm)
Weight
Empty (kg/lbs) 15 lbs (6.8kg)
Full: 36 lbs (16.3kg)
